Three Phase Asynchronous Electric Motor Description

Je Energy’s YBX3 series of high-efficiency explosion-proof three-phase asynchronous motors feature a center height range of H80 to H355mm, with rated power from 0.18kW to 315kW and supply voltages of 380V, 660V, 1140V (customizable). These fully enclosed motors meet the Grade 2 efficiency standards of GB18613-2012, with protection class IP55, insulation class F, and cooling type IC411. The explosion-proof ratings include Ex d IIB T4 Gb (for factory use) and Ex d I Mb (for mine use), ensuring safe operation in explosive environments. Key features include safety, compact structure, high efficiency, high reliability, low noise, lightweight, and easy maintenance. They comply with national standards GB 3836.1-2010 and GB 3836.2-2010. Je Energy is dedicated to providing high-quality motor products and professional after-sales service, ensuring efficient and safe operation in various environments.

Technical Data for YBX3 Series

Type Rated Rated EFF PowerFactor Rated LockedTorque LockedTorque LockedCurrent
Power Speed η（%） (cosφ) Current
kW (r/min) (A) RatedTorque RatedTorque RatedCurrent
2poles—Synchronousspeed3000RPM,50Hz
YBX3-80M1-2 0.75 2855 80.7 0.83 1.7 2.3 2.3 6.8
YBX3-80M2-2 1.1 2855 82.7 0.83 2.4 7.3
YBX3-90S-2 1.5 2880 84.2 0.84 3.2 7.6
YBX3-90L-2 2.2 2880 85.9 0.85 4.6 7.8
YBX3-100L-2 3 2890 87.1 0.87 6 8.1
YBX3-112M-2 4 2905 88.1 0.88 7.8 8.3
YBX3-132S1-2 5.5 2920 89.2 0.88 10.6 2.2 8
YBX3-132S2-2 7.5 2915 90.1 0.89 14.2 7.8
YBX3-160M1-2 11 2940 91.2 0.89 20.6 2.3 7.9
YBX3-160M2-2 15 2940 91.9 0.89 27.9 8
YBX3-160L-2 18.5 2940 92.4 0.89 34.2 8.1
YBX3-180M-2 22 2950 92.7 0.89 40.5 8.2
YBX3-200L1-2 30 2950 93.3 0.89 54.9 7.5
YBX3-200L2-2 37 2950 93.7 0.89 67.4
YBX3-225M-2 45 2965 94 0.89 81.7 7.6
YBX3-250M-2 55 2970 94.3 0.89 99.6
YBX3-280S-2 75 2975 94.7 0.89 135 2 6.9
YBX3-280M-2 90 2975 95 0.89 162 7
YBX3-315S-2 110 2980 95.2 0.89 197 1.9 2.2 7.1
YBX3-315M-2 132 2980 95.4 0.89 236
YBX3-315L1-2 160 2980 95.6 0.89 286
YBX3-315L2-2 200 2980 95.8 0.89 356
YBX3-355S1-2 185 2980 95.7 0.89 330
YBX3-355S2-2 200 2980 95.8 0.89 356
YBX3-355M1-2 220 2980 95.8 0.89 392 1.8
YBX3-355M2-2 250 2980 95.8 0.9 441
YBX3-355L1-2 280 2980 95.8 0.9 493
YBX3-355L2-2 315 2980 95.8 0.9 555
4poles—Synchronousspeed1500RPM,50Hz
YBX3-80M1-4 0.55 1420 80.8 0.75 1.4 2.3 2.3 6.3
YBX3-80M2-4 0.75 1420 82.5 0.75 1.8 6.5
YBX3-90S-4 1.1 1425 84.1 0.75 2.6 6.6
YBX3-90L-4 1.5 1425 85.3 0.75 1.5 6.9
YBX3-100L1-4 2.2 1440 86.7 0.81 4.8 7.5
YBX3-100L2-4 3 1440 87.7 0.82 6.3 7.6
YBX3-112M-4 4 1455 88.6 0.82 8.4 7.7
YBX3-132S-4 5.5 1460 89.6 0.82 5.1 2 7.5
YBX3-132M-4 7.5 1455 90.4 0.83 15.2 7.4
YBX3-160M-4 11 1465 91.4 0.85 21.5 7.5
YBX3-160L-4 15 1465 92.1 0.85 29.1 7.5
YBX3-180M-4 18.5 1470 92.6 0.86 35.3 7.7
YBX3-180L-4 22 1470 93 0.86 41.8 7.8
YBX3-200L-4 30 1475 93.6 0.87 56 7.2
YBX3-225S-4 37 1480 93.9 0.87 68.8 2 7.3
YBX3-225M-4 45 1480 94.2 0.87 83.4 7.4
YBX3-250M-4 55 1480 94.6 0.88 100 7.4
YBX3-280S-4 75 1485 95 0.88 136 6.7
YBX3-280M-4 90 1485 95.2 0.89 161 7
YBX3-315S-4 110 1485 95.4 0.89 197 2.2
YBX3-315M-4 132 1485 95.6 0.89 236
YBX3-315L1-4 160 1485 95.8 0.89 285
YBX3-315L2-4 200 1485 96 0.89 356
YBX3-355S1-4 185 1490 95.9 0.89 329
YBX3-355S2-4 200 1490 96 0.89 356
YBX3-355M1-4 220 1490 96 0.89 391
YBX3-355M2-4 250 1490 96 0.89 445
YBX3-355L1-4 280 1490 96 0.89 498
YBX3-355L2-4 315 1490 96 0.89 560
6poles—Synchronousspeed1000RPM,50Hz
YBX3-80M1-6 0.37 930 73.5 0.7 1.1 1.9 2 4.7
YBX3-80M2-6 0.55 930 77.2 0.72 1.5 2.1
YBX3-90S-6 0.75 940 78.9 0.72 2 2.1 5.8
YBX3-90L-6 1.1 940 81 0.73 2.8 5.9
YBX3-100L-6 1.5 950 82.5 0.74 3.7 6
YBX3-112M-6 2.2 950 84.3 0.74 5.4
YBX3-132S-6 3 975 85.6 0.74 7.2 2 6.2
YBX3-132M1-6 4 975 86.8 0.74 9.5 6.8
YBX3-132M2-6 5.5 975 88 0.75 12.7 7.1
YBX3-160M-6 7.5 970 89.1 0.78 16.4 2.1 6.7
YBX3-160L-6 11 970 90.3 0.78 23.7 6.9
YBX3-180L-6 15 980 91.2 0.81 30.9 2 7.2
YBX3-200L1-6 18.5 980 91.7 0.81 37.8 2.1
YBX3-200L2-6 22 980 92.2 0.82 44.2 7.3
YBX3-225M-6 30 985 92.9 0.81 60.6 2 7.1
YBX3-250M-6 37 985 93.3 0.84 71.7 2.1
YBX3-280S-6 45 985 93.7 0.86 84.8 2 7.2
YBX3-280M-6 55 985 94.1 0.86 103
YBX3-315S-6 75 990 94.6 0.85 142 2 7
YBX3-315M-6 90 990 94.9 0.84 172
YBX3-315L1-6 110 990 95.1 0.85 207
YBX3-315L2-6 132 990 95.4 0.86 244
YBX3-355S-6 160 990 95.6 0.87 292 1.9
YBX3-355M1-6 185 990 95.7 0.87 338
YBX3-355M2-6 200 990 95.8 0.87 365
YBX3-355L1-6 220 990 95.8 0.87 401
YBX3-355L2-6 250 990 95.8 0.87 456
8poles—Synchronousspeed750RPM,50Hz
YBX3-80M1-8 0.18 680 58.7 0.61 0.8 1.8 1.9 3.3
YBX3-80M2-8 0.25 680 64.1 0.61 1
YBX3-90S-8 0.37 695 69.3 0.65 1.3 4
YBX3-90L-8 0.55 695 73 0.65 1.8 2
YBX3-100L1-8 0.75 715 75 0.67 2.3
YBX3-100L2-8 1.1 715 77.7 0.69 3.1 5
YBX3-112M-8 1.5 700 79.7 0.71 4
YBX3-132S-8 2.2 715 81.9 0.71 5.8 6
YBX3-132M-8 3 715 83.5 0.73 7.5
YBX3-160M1-8 4 720 84.8 0.73 10 1.9
YBX3-160M2-8 5.5 720 86.2 0.74 13.1
YBX3-160L-8 7.5 720 87.3 0.75 17.4
YBX3-180L-8 11 730 88.6 0.76 24.8 2 6.5
YBX3-200L-8 15 730 89.6 0.76 33.5 2 6.6
YBX3-225S-8 18.5 735 90.1 0.76 41 1.9
YBX3-225M-8 22 735 90.6 0.78 47.3
YBX3-250M-8 30 735 91.3 0.79 63.2 6.5
YBX3-280S-8 37 740 91.8 0.79 77.5 6.6
YBX3-280M-8 45 740 92.2 0.79 93.9
YBX3-315S-8 55 740 92.5 0.81 112 1.8
YBX3-315M-8 75 740 93.2 0.81 151 6.4
YBX3-315L1-8 90 740 93.5 0.82 178
YBX3-315L2-8 110 740 93.7 0.82 218
YBX3-355S-8 132 740 94 0.82 260
YBX3-355M-8 160 740 94.3 0.82 314
YBX3-355L1-8 185 740 94.5 0.82 363
YBX3-355L2-8 200 740 94.6 0.83 387
10poles—Synchronousspeed600RPM,50Hz
YBX3-315S-10 45 590 91.2 0.75 100 1.3 2 6.2
YBX3-315M-10 55 590 91.8 0.75 121
YBX3-315L1-10 75 590 92.3 0.76 162
YBX3-315L2-10 90 590 92.9 0.77 191
YBX3-355S-10 90 590 92.9 0.77 191 6
YBX3-355M1-10 110 590 93.1 0.78 230
YBX3-355M2-10 132 590 93.5 0.78 275
YBX3-355L1-10 160 590 93.5 0.78 333
YBX3-355L2-10 185 590 93.5 0.78 385

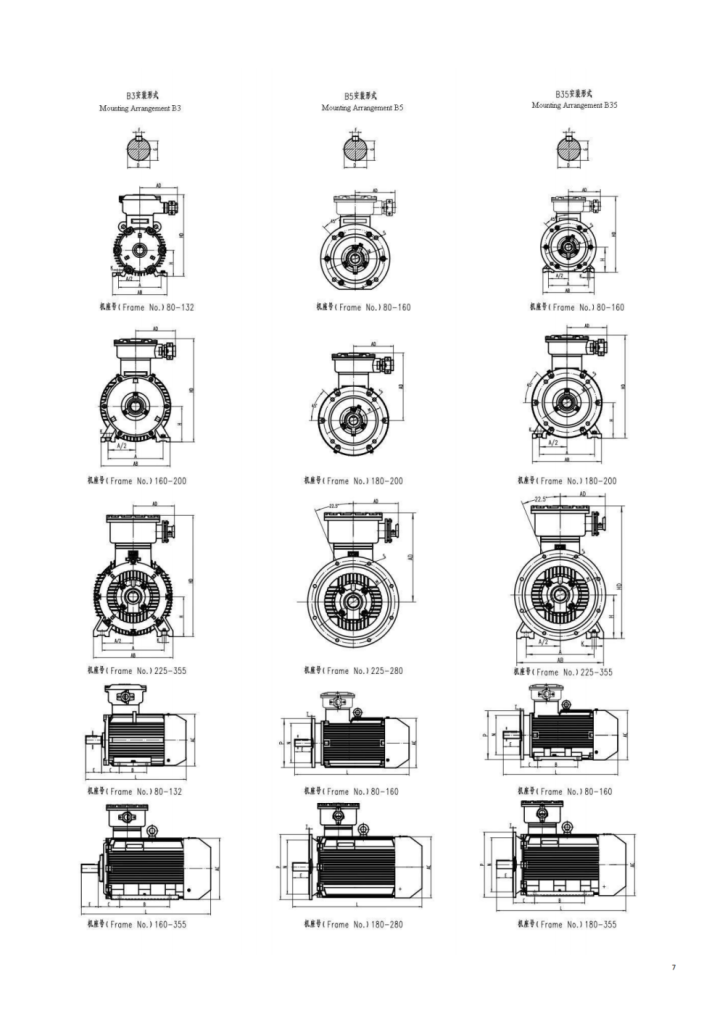

Way of Mounting

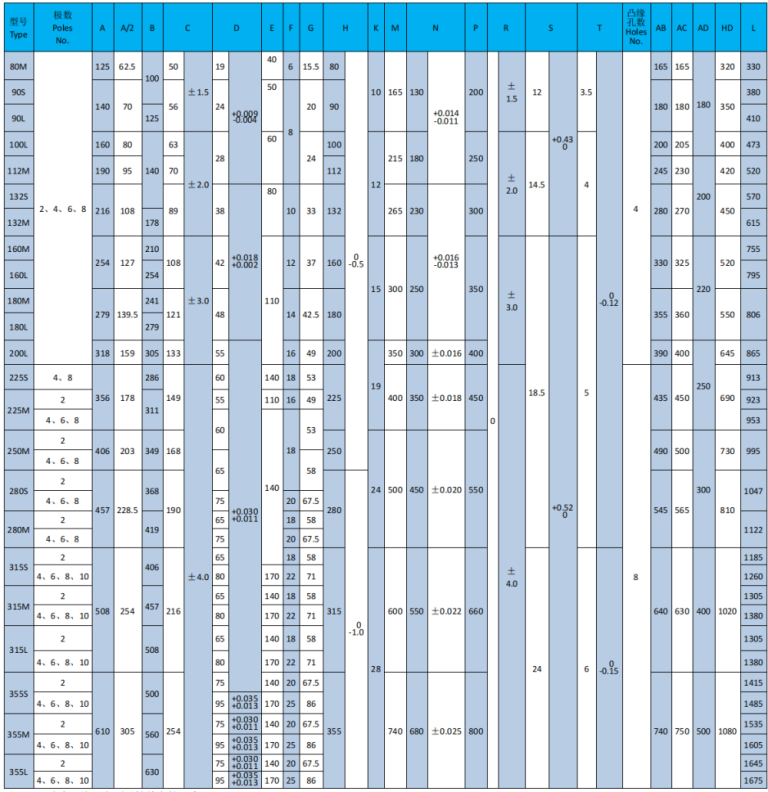

Outline and Mounting Dimensions
